Shutter for marking lasers

MG_3266

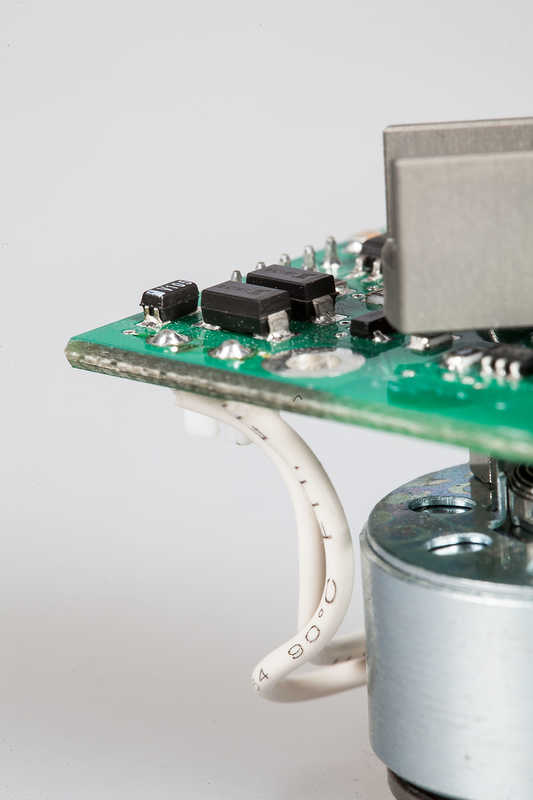

A combination of a rotary solenoid and a PCB creates this compact and safety-critical unit. The PCB contains the electronic drive circuit with its microcontroller as well as the HAL sensor system with its output-circuit.

Application:

Laser shutter for industrial marking laser.

Features:

  • Doubled covered aperture.
  • Mechanical reset for fail-safe.
  • Contactless position feedback with HAL-sensors for both positions.
  • Smart control of the actuator with softstart to minimize the activation shock.
  • Current reduction to minimize power dissipation.

Quantities:

> 500 units per year

^
