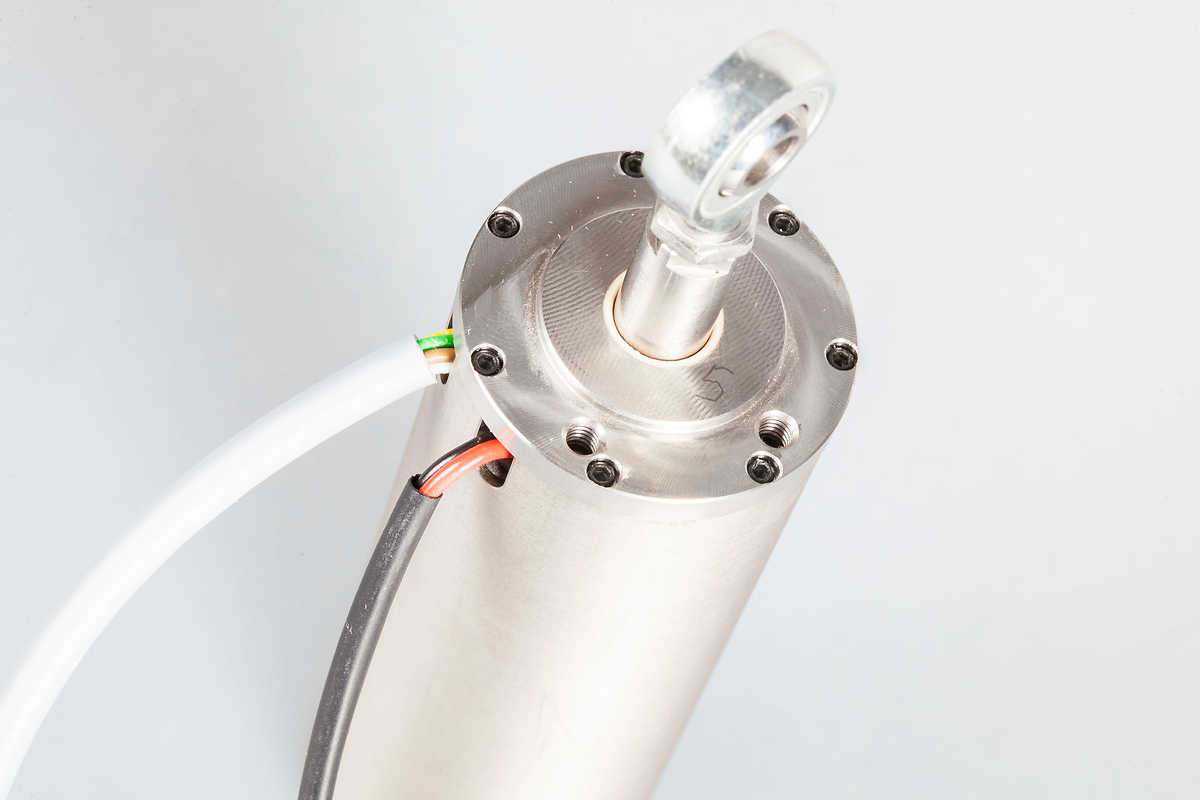

Voice coil motor with integrated encoder

MG_3234

This dynamic precision drive system combines actuator and sensor. With this voice-coil-drive a very high productivity in assembly lines can by achieved with a small demand of space.

Application:

Motor of welding heads in assembly lines - mainly in verhicle body construction of automobile manufacturers and their suppliers.

Features:

  • High dynamic: (12mm stroke under a load of 100N in < 5ms).
  • Encoder integrated with a resolution of < 20µm to control the welding process.
  • Sealed system with a high level of protection.
  • Constant force-current ration over the full stroke.
  • Large temperature range up to 130°C.

Quantities:

> 5,000 units per year

^
